High Efficient LED Module
LED module could be designed and made in customized pattern whose size ranges from 5um² to 10mm².The LED module has wavelength within 500nm ~ 700nm, luminous angle > 160 degree, maximum operating
voltage DC 3.0V and starting current less than 1uA.
LED Module Features
- Low Power Consumption
- Segmented Display
- Customized Pattern
- Multi Color Option: Red, Green, Orange.
Laser Module

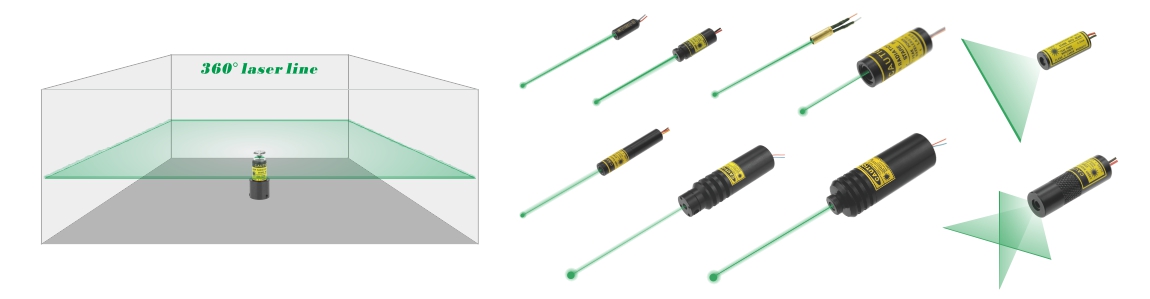

Green Laser Module
Completely differing from the normal DPSS green 532nm laser, the new green laser beam comes directly from 520nm laser diode. Different from traditional double DPSS 532nm green laser, the semi-conductor green diode laser is with more stabilized output power, wider working temperature range, quick and high frequency activation, meanwhile much smaller in size, and same as red diode laser, it could be applied to the sophisticated environment such as outdoor, industry, measurement fields.
Specification
| Green Laser Module/Direct | |
| Output wavelength | 520nm(±10nm) |
| Output power(Dot) | ≤40mW |
| Operating voltage | DC2.1-24V |
| Operating current | 8~160mA(7.5V) |
| Beam divergence | 0.2-2mrad |
| Beam diameter(Dot) | minimum diameter ≤Φ1mm@1m |
| Line thickness(Line/Cross) | ≤0.5mm@0.5m; ≤1mm@2m; ≤2mm@6m |
| Curvature(Line/Cross) | ≤0.5mm@5m |
| Verticality(Cross) | ≤±0.5° |
| Fan angle(Line/Cross) | 5°-360° (Line), 5° -90° (Cross) |
| Beam mode | TEM00 |
| Output mode | CW/Modulation Frequency 0~100MHz |
| Optics | aspheric optical glass lens |
| Operating temperature | -4 ~140 (-20℃~60℃) |
| Storage temperature | -4 ~158 (-20℃~70℃) |
| Stability | <3%@-4 ~140 (-20℃~60℃) |
| Laser classification | class1,1M,2,2M,3R,3B |
DPSS Green Laser Module
DPSS green Laser module(532nm), using laser diode (808nm)pumped Nd：YV04, has all optical components arrayed in one housing and the module has features as anti-shock, dust free, output power range 0.4-300mW, Min.
beam dot≤1mm, and fan angle10°-360°. The thickness for line laser is 0.5mm.
DPSS 532nm green laser with round dot beam, single wavelength, can be made into temperature controlled laser module which can have wider working temperature range. 360° laser module projecting a enclosed line cycle on same plane.
Specification
| Green Laser Module/DPSS | |
| Output wavelength | 532nm |
| Output power | ≤300mW |
| Operating voltage | DC2.7-24V |
| Operating current | ≤500mA |
| Beam divergence | 0.2-2mrad(Dot) |
| Beam diameter(Dot) | minimum diameter: ≤Φ1mm@1m |
| Line thickness(Line/Cross) | ≤0.5mm@0.5m; ≤1mm@2m; ≤2mm@6m |
| Curvature(Line) | ≤0.5mm@5m |
| Verticality(Cross) | ≤±0.5° |
| Fan angle | 5°-360° (Line), 5° -90° (Cross) |
| Cr ystal | Nd:YV04 and KTP |
| Beam mode | TEM00, continuous output |
| Optics | coated glass lens |
| Operating temperature | 41 ~104 (5℃~40℃) |
| Storage temperature | -40 ~176 (-40℃~80℃) |
| Stability | ±20%@41 ~104 (5℃-40℃) |
| Laser classification | class1,1M,2,2M,3R,3B |

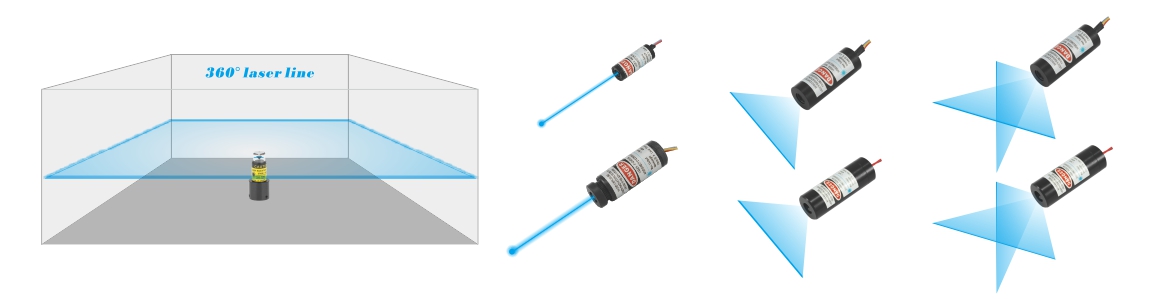

Blue Laser Module
The newly developed blue laser module is an small laser module for industrial users. It uses 405nm/450nmlaser diode with output power 120mW(405nm) / 50mW(450nm),drive circuit, built i ≤ ≤ n glass lens , and wide fan angle (5°-360°). The thickness of line can be 0.5mm at distance of 0.5m. It’s small, compact, highly reliable, an anti-shock and dust free.360° laser module projecting a enclosed line cycle on same plane.
Specification
| Output wavelength | 405nm,450nm |
| Output power | 405nm(≤120mW) |
| 450nm(≤50mW) | |
| Operating voltage | DC3V-24V |
| Operating current | ≤180mA |
| Beam divergence | 0.2-2mrad(Dot); 0.5-2mrad(Line) |
| Beam diameter (Dot) | minimum diameter: ≤Φ1mm@1m |
| Line thickness (Line/Cross) | ≤0.5mm@0.5m; ≤1mm@2m; ≤2mm@6m |
| Curvature (Line/Cross) | ≤0.5mm@5m |
| Verticality (Cross) | ≤±0.5° |
| Fan angle | 5°-360° (Line), 5° -90° (Cross) |
| Beam mode | TEM00, continuous output |
| Optics | coated glass lens |
| Operating temperature | 14 ~104 (-10℃~60℃) |
| Storage temperature | -40 ~176 (-40℃~80℃) |
| Stability | <3%@14 ~104 (-10℃~60℃) |
| Laser classification | class1,1M,2,2M,3R,3B |
Red Laser Module
Surpass red laser diode module is compact and reliable. It ’s anti-shock, dust free, output power ranging from 635nm 50mW、650nm 80mW、670nm 7mW, Min. beam dot≤1mm,fan angle 5°-360° and 0.5mm line thickness. Red diode laser module with compact size(Dia 4mm), wider working range 14 ~140 (-10℃-60℃),high accuracy, can be applied to industry, measurement, medical, teaching field, customized design is available. 360° laser module projecting a enclosed line cycle on same plane.
Specification
| Output wavelength | 635nm,650nm,670nm |
| Output power(Dot) | 635nm(≤50mW); |
| 650nm(≤80mW); | |
| 670nm(≤7mW) | |
| Operating voltage | DC2.7-24V |
| Operating current | ≤120mA |
| Beam divergence | 0.2-1.5mrad |
| Beam diameter(Dot) | minimum diameter: ≤Φ1mm@1m |
| Line thickness(Line/Cross) | ≤0.5mm@0.5m; ≤1mm@2m; ≤2mm@6m |
| Curvature(Line/Cross) | ≤0.5mm@5m |
| Verticality(Cross) | ≤±0.5° |
| Fan angle(Line/Cross) | 5°-360° (Line), 5° -90° (Cross) |
| Optics | coated glass lens or plastic lens |
| Operating temperature | 14 ~140 (-10℃~60℃) |
| Storage temperature | -40 ~176 (-40℃~80℃) |
| Stability | <3%@14 ~140 (-10℃~60℃) |
| Laser classification | class1,1M,2,2M,3R,3B |
IR Laser Module
Surpass offers 6 different wavelengths infrared laser modules with output power ≤4000mW. The beam shape can be dot or lines and the beam divergence is between 0.2 – 50 mrad. The operating temperature range
is from -40 ~140 (-10 ℃ to 60 ℃). Besides dot, line products, it can be used as infrared pointing and illumination device. 360° laser module projecting a enclosed line cycle on same plane.
Specification
| Output wavelength | 780nm,808nm,830nm,850nm,940nm,980nm |
| Output power | 780nm(≤30mW); 808nm(≤4000mW); 830nm(≤150mW) |
| 850nm(≤150mW); 940nm(≤150mW); 980nm(≤160mW) | |
| Operating voltage | DC2.7-24V |
| Operating current | ≤5A |
| Beam divergence | 0.2-50mrad |
| Fan angle(Line/Cross) | 5°-360° (Line)@TEM00, 5° -90° (Cross)@TEM00 |
| Optics | coated glass lens or plastic lens |
| Operating temperature | 14 ~140 (-10℃~60℃) |
| Storage temperature | -40 ~176 (-40℃~80℃) |
| Stability | <3%@14 ~140 (-10℃~60℃) |
| Laser classification | class1,1M,2,2M,3R,3B,4 |
